Hydraulic Fluid Coupling

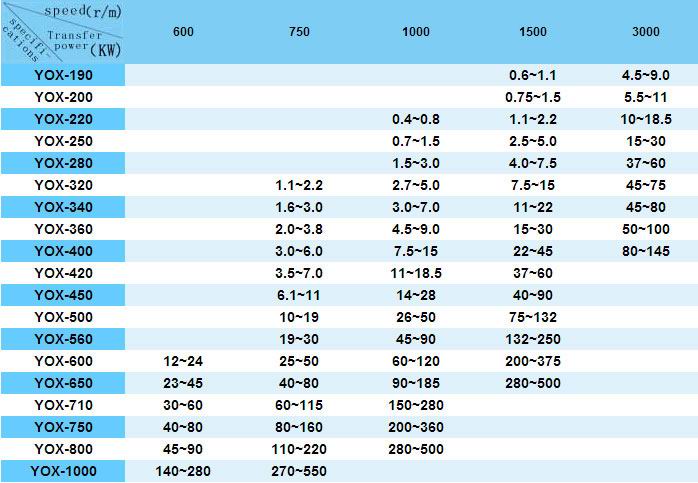

Torque-Limiting Type Fluid Coupling Specifications Table

YOX Type Plum Blossom Hydraulic Coupling

YOX-type
YOX-type fluid coupling is a connection type in which the shaft of electric engine and reducer are directly inserted into coupling hole and flange hole with elastic plum pad or nylon pin at one end. This connection type is now the most commonly used one because of its simple structure, firm connection and small axial dimension.
Size & SpecificationTable OfYOX Fluid Coupling

Specification	D	L(Min)	d1(Max)	L1(Max)	d2(Max)	L2(Max)	M(Demolition Thread)	Plum Cushion	Oil Volume(L)	Weight(Kg)
YOX-190	235	180	30	60	25	60	16	MT4	0.4~0.8	8
YOX-200	240	180	30	60	30	70	16	MT4	0.5~1.0	9.5
YOX-220	260	200	35	60	30	60	16	MT4	0.8~1.6	14
YOX-250	292	240	36	45	40	80	16	MT5	1.3~2.5	15
YOX-280	328	240	40	80	45	100	20	MT7	1.5~30	18
YOX-320	380	276	48	110	50	110	30×1.5	MT7	2.4~4.8	30
YOX-340	392	282	48	110	50	110	30×1.5	MT8	2.7~5.5	33
YOX-360	422	287	55	110	55	110	30×1.5	MT8	3.8~7.6	40
YOX-400	465	352	60	140	60	130	36×2	MT10	4.8~9.5	58
YOX-420	480	345	65	140	65	140	36×2	MT10	4.9~9.8	56
YOX-450	522	384	75	140	75	140	42×2	MT10	6.1~12	82
YOX-500	572	426	80	170	90	170	42×2	MT11	10~20	113
YOX-560	642	487	100	210	100	210	42×2	MT11	16~26	140
YOX-600	695	540	100	210	100	180	48×2	MT12	18~36	180
YOX-650	750	556	130	210	120	210	48×2	MT12	25~46	220
YOX-710	815	580	130	210	110	210	48×2	MT12	37~60	310
YOX-750	850	603	140	250	140	250	56×2	MT12	40~80	350
YOX-800	908	705	140	250	130	250	56×2	MT12	50~95	420
YOX-1000	1120	735	150	250	150	250	60×3		78~156	650

YOXz Type Brake Pulley Hydraulic Coupling

YOXz-type
YOXz-type fluid coupling is a connection type with brake wheel fixed at the output end of coupling connected with the shaft of reducer in which wheel drive is used, coupling and the shaft of electric engine is connected, elastic plum pad or nylon pin is fixed at output end. However, customers may connect in their own way. The axial distance of this type is a little shorter than that of YOXIIz-type.
Size & SpecificationTable OfYOXZ Fluid Coupling

Specification	D	Dz/Lz	C	d1 (Max)	L1 (Max)	d2 (Max)	L2 (Max)	L (Min)	M (Demolition Thread)	Oil Volume (L)	Weight (Kg)
Yoxz-280	328	200/85	10	38	80	45	90	300	20	1.5~3.0	33
Yoxz-320	380	200/85	10	42	110	50	110	329	30×1.5	2.4~4.8	45
Yoxz-360	422	300/150	10	55	110	55	110	360	30×1.5	3.8~7.6	55
Yoxz-400	465	315/150	10	60	140	65	140	410	36×2	4.8~9.5	77
Yoxz-450	522	315/150	10	75	140	70	140	460	42×2	6.1~12	101
Yoxz-500	572	400/190	10	80	170	90	170	550	42×2	10~20	150
Yoxz-560	642	400/190	10	100	170	110	170	580	42×2	16~26	177
Yoxz-600	695	500/210	15	100	170	130	180	610	48×2	18~36	237
Yoxz-650	750	500/210	15	120	210	130	250	660	48×2	25~46	247
Yoxz-750	850	630/265	20	140	250	150	250	770	56×2	40~80	440
Yoxz-800	908	630/265	20	140	250	150	250	800	56×2	50~95	520
Yoxz-1000	1120	700/300	25	150	250	150	250	970	60×3	78~156	770

YOXF TypeComposite Vent Fluid Hydraulic Coupling

YOXF-type
YOXF-type composite vent fluid coupling expands the inner chamber of the rotating shell to achieve longer starting time and smaller impact on equipment. This type generally applies to the connection type in which wheel drive is used and the shaft of electric motor bears the weight of coupling. The applicable types are: YOXF, YOXFp, YOXFZ.
Size & SpecificationTable OfYOXF Fluid Coupling

Specification	D	L	d1	L1	d2	L2	M (Demolition Thread)	Oil Volume (L)	Weight (Kg)
Yoxf-360	410	320	55	110	55	110	30×1.5	3.5~7.0	34
Yoxf-400	465	385	60	140	60	140	36×2	4.3~8.6	47
Yoxf-450	522	410	75	140	75	140	42×2	5.8~11.7	66
Yoxf-500	572	465	90	170	80	170	42×2	9.5~19	91
Yoxf-560	642	530	100	210	110	210	42×2	13~25	112

Other Types and Models


YOXy & YOXys Type		YOXp Type	YOXf Type	YOXyf Type	YOXysf Type
YOXy-220	YOXys-220	YOXp-190	YOXf-250	YOXyf-250	YOXysf-250
YOXy-250	YOXys-250	YOXp-200	YOXf-280	YOXyf-280	YOXysf-280
YOXy-280	YOXys-280	YOXp-220	YOXf-320	YOXyf-320	YOXysf-320
YOXy-320	YOXys-320	YOXp-250	YOXf-340	YOXyf-340	YOXysf-340
YOXy-340	YOXys-340	YOXp-280	YOXf-360	YOXyf-360	YOXysf-360
YOXy-360	YOXys-360	YOXp-320	YOXf-400	YOXyf-400	YOXysf-400
YOXy-400	YOXys-400	YOXp-340	YOXf-450	YOXyf-450	YOXysf-450
YOXy-420	YOXys-420	YOXp-360	YOXf-500	YOXyf-500	YOXysf-500
YOXy-450	YOXys-450	YOXp-400	YOXf-560	YOXyf-560	YOXysf-560
YOXy-500	YOXys-500	YOXp-420	YOXf-600	YOXyf-600	YOXysf-600
YOXy-560	YOXys-560	YOXp-450	YOXf-650	YOXyf-650	YOXysf-650
YOXy-600	YOXys-600	YOXp-500	YOXf-710	YOXyf-710	YOXysf-710
YOXy-650	YOXys-650	YOXp-560	YOXf-750	YOXyf-750	YOXysf-750
YOXy-710	YOXys-710	YOXp-600	YOXf-800	YOXyf-800	YOXysf-800
YOXy-750	YOXys-750	YOXp-650	YOXf-1000	YOXyf-1000	YOXysf-1000
YOXy-800	YOXys-800
YOXy-1000	YOXys-1000


YOX Pin Type	YOXIIz Pin Type	YOXyIIz &YOXysIIz Type		YOXyz &YOXysz Type
YOX-190	YOX IIz-360	YOXyIIz-360	YOXysIIz-360	YOXyz-280	YOXysz-280
YOX-200	YOX IIz-400	YOXyIIz-400	YOXysIIz-400	YOXyz-320	YOXysz-320
YOX-220	YOX IIz-450	YOXyIIz-450	YOXysIIz-450	YOXyz-360	YOXysz-360
YOX-250	YOX IIz-500	YOXyIIz-500	YOXysIIz-500	YOXyz-400	YOXysz-400
YOX-280	YOX IIz-560	YOXyIIz-560	YOXysIIz-560	YOXyz-450	YOXysz-450
YOX-320	YOX IIz-600	YOXyIIz-600	YOXysIIz-600	YOXyz-500	YOXysz-500
YOX-340	YOX IIz-650	YOXyIIz-650	YOXysIIz-650	YOXyz-560	YOXysz-560
YOX-360	YOX IIz-750	YOXyIIz-750	YOXysIIz-750	YOXyz-600	YOXysz-600
YOX-400	YOX IIz-800	YOXyIIz-800	YOXysIIz-800	YOXyz-650	YOXysz-650
YOX-420	YOX IIz-1000	YOXyIIz-1000	YOXysIIz-1000	YOXyz-750	YOXysz-750
YOX-450				YOXyz-800	YOXysz-800
YOX-500				YOXyz-1000	YOXysz-1000
YOX-560
YOX-600
YOX-650

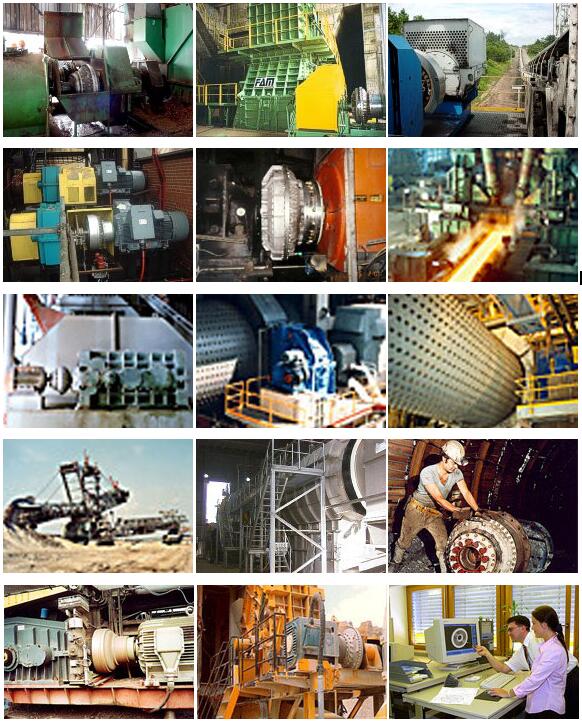

ApplicationCase
