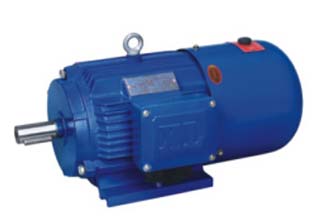

Y2EJ Series Electromagnetic Braking Three-Phase Asynchronous Motor
Product overview and scope of application:
Y2EJ series induction electromagnetic braking three-phase asynchronous motor power rating, installation size, insulation grade, working mode, cooling mode, use conditions are the same as the corresponding specifications of the Y2 series. The implementation of standard JB/T8680-2008 "Y2 series three-phase asynchronous motor technical conditions" and refer to Q/HDJ01 -2008 "Y2EJ series electromagnetic braking three-phase asynchronous motor technical conditions".
Y2EJ series motor is suitable for all kinds of machinery, such as fast stop, accurate positioning, reciprocating operation, frequent start and prevent sliding. Such as lifting machinery, transport machinery, packaging machinery, printing machinery, food machinery, construction machinery, woodworking machinery, deceleration machinery, metallurgical machinery, forging machinery, etc..
Structural Characteristics And Operating Principle:
When the motor is connected to three-phase power, the electromagnet also connected, and will produce electromagnetic suction, suction armature, the friction surface and the static disc brake is disengaged, the motor starts to rotate, the electromagnetic torque under the action of the electromagnet power, at the same time off, the electromagnetic suction electric magnet armature in the brake spring disappeared. Under the pressure of contact with the brake disc friction surface, friction torque, the motor stops. If the motor needs to change the position of the rotor after power failure, it can be realized by means of the release device. The utility model is characterized in that two special sliding blocks can be driven to rotate by releasing the screws, and the utility model can generate mutual displacement.
