WP Worm Speed Reducer
Power: 0.12-45Kw
Transmission Ration Range: 10, 15, 20, 25, 30, 40, 50, 60
Output Torque: 4.5-2590 N
Output Speed: 14-280 Rpm
Structure:

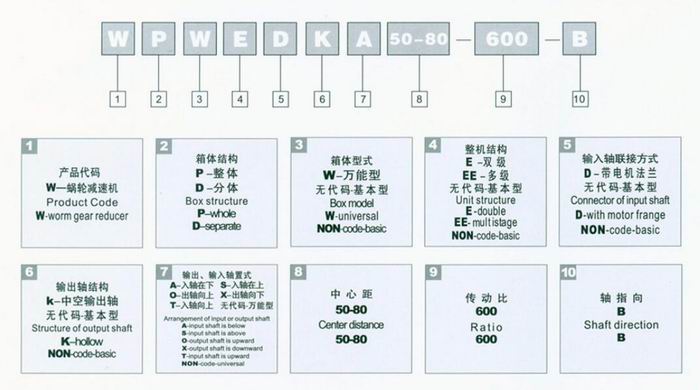

Model Expression:
Features:
1. The base-plate must be plane and stoutness and the base-plate must be screwed down and shock proof.
2. The connecting shaft of prime mover, reducer and operation device must be coaxial installation.
3. The diameter tolerance zone of input and output shaft is H6, the holes of fittings (such as couplings, belt-pully, sprocket wheel and so on) must properly mate the shaft, which prevents bearing from breakage because of over-loose mate.
4. Drivers such as sprocker wheel and gear must be fitted close to bearings in order to reduce bending stress of hanging shaft.
5. While assembling motor of WPD reducer, it is necessary that proper amount of butter applies to the warm shaft input hole and keyway, avoiding assembling too tightly and rusting after using for a long time.
6. When ordering or using all kinds of WPD type, if the motor weight is binger than the common, supporting set is required.

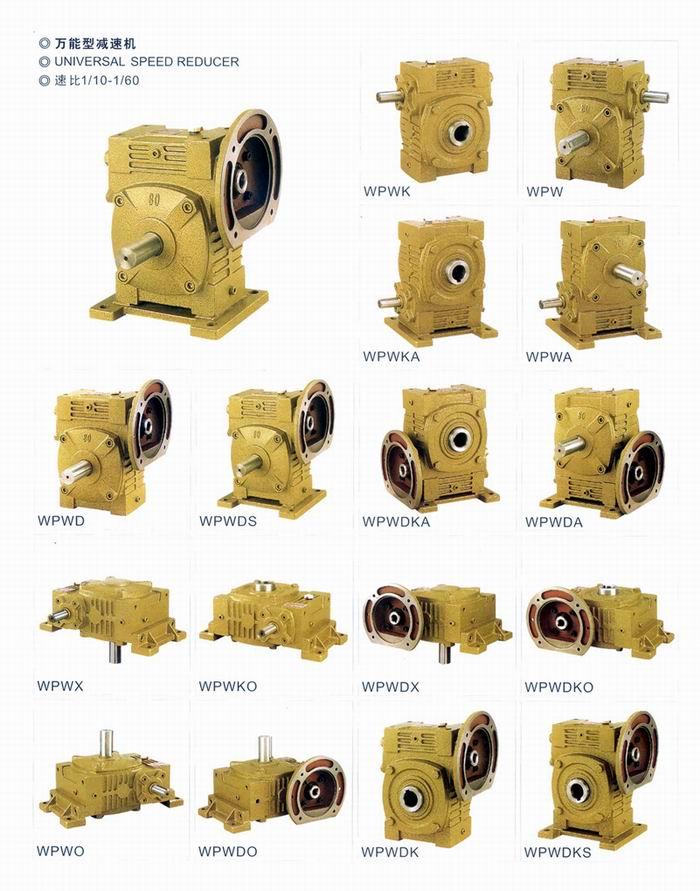

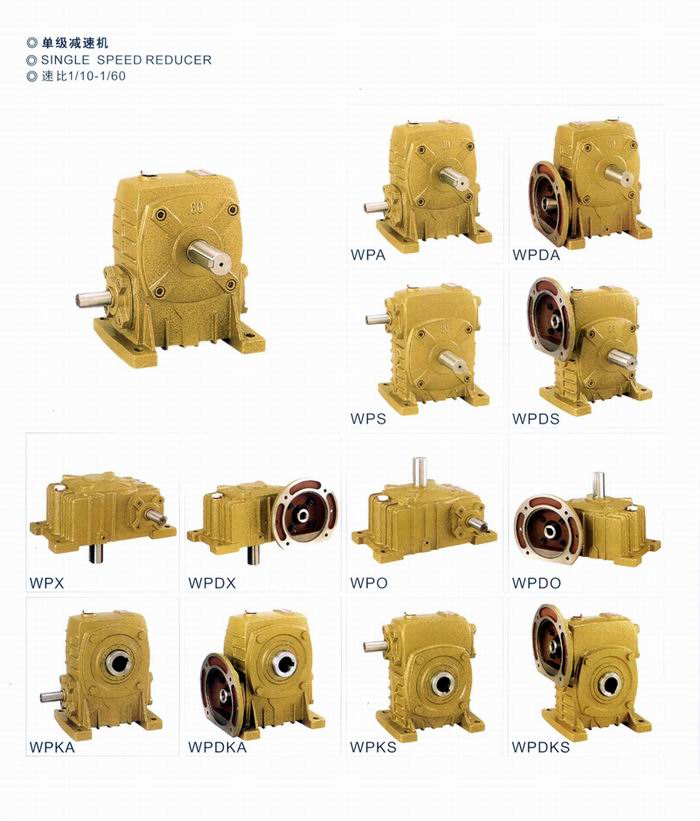

Main Types & Models:
WPA Series | WPA40, WPA50, WPA60, WPA70, WPA80, WPA100, WPA120, WPA135, WPA147, WPA155, WPA175, WPA200, WPA250 |
WPS Series | WPS40, WPS50, WPS60, WPS70, WPS80, WPS100, WPS120, WPS135, WPS147, WPS155, WPS175, WPS200, WPS250 |
WPO Series | WPO40, WPO50, WPO60, WPO70, WPO80, WPO100, WPO120, WPO135, WPO147, WPO155, WPO175, WPO200, WPO250 |
WPX Series | WPX40, WPX50, WPX60, WPX70, WPX80, WPX100, WPX120, WPX135, WPX147, WPX155, WPX175, WPX200, WPX250 |
WPDA Series | WPDA50, WPDA60, WPDA70, WPDA80, WPDA100, WPDA120, WPDA135, WPDA147, WPDA155, WPDA175, WPDA200, WPDA250 |
WPDO Series | WPDO50, WPDO60, WPDO70, WPDO80, WPDO100, WPDO120, WPDO135, WPDO147, WPDO155, WPDO175, WPDO200, WPDO250 |
WPKA Series | WPKA50, WPKA60, WPKA70, WPKA80, WPKA100, WPKA120, WPKA135, WPKA147, WPKA155, WPKA175, WPKA200 |
WPW Series | WPW40, WPW50, WPW60, WPW70, WPW80, WPW100, WPW120, WPW135, WPW147, WPW155, WPW175, WPW200, WPW250 |
WPWA Series | WPWA40, WPWA50, WPWA60, WPWA70, WPWA80, WPWA100, WPWA120, WPWA135, WPWA147, WPWA155, WPWA175, WPWA200, WPWA250 |
WPWS Series | WPWS40, WPWS50, WPWS60, WPWS70, WPWS80, WPWS100, WPWS120, WPWS135, WPWS147, WPWS155, WPWS175, WPWS200, WPWS250 |
WPWX Series | WPWX40, WPWX50, WPWX60, WPWX70, WPWX80, WPWX100, WPWX120, WPWX135, WPWX147, WPWX155, WPWX175, WPWX200, WPWX250 |
WPWO Series | WPWO40, WPWO50, WPWO60, WPWO70, WPWO80, WPWO100, WPWO120, WPWO135, WPWO147, WPWO155, WPWO175, WPWO200, WPWO250 |
WPWD Series | WPWD40, WPWD50, WPWD60, WPWD70, WPWD80, WPWD100, WPWD120, WPWD135, WPWD147, WPWD155, WPWD175, WPWD200, WPWD250 |
WPWK Series | WPWK40, WPWK50, WPWK60, WPWK70, WPWK80, WPWK100, WPWK120, WPWK135, WPWK147, WPWK155, WPWK175, WPWK200, WPWK250 |
WPWT Series | WPWT40, WPWT50, WPWT60, WPWT70, WPWT80, WPWT100, WPWT120, WPWT135, WPWT147, WPWT155, WPWT175, WPWT200, WPWT250 |
For other types and models please feel free to contact us.
