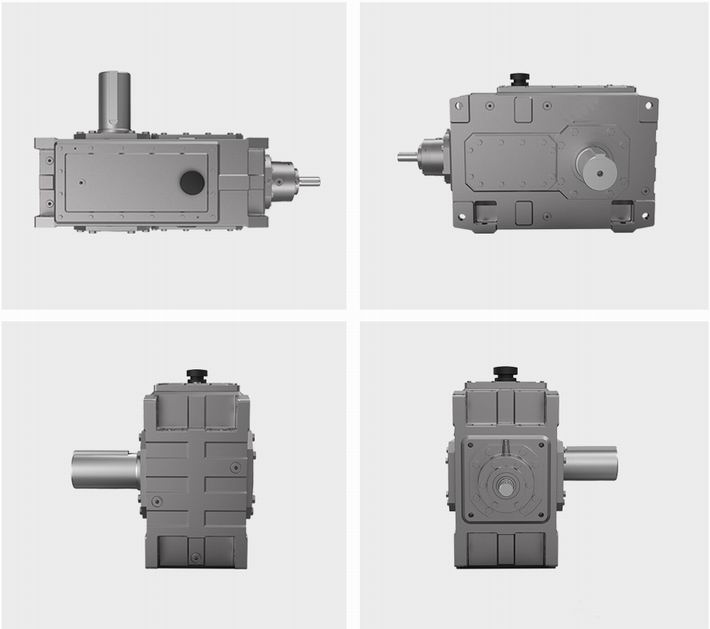

Basic Types of V(B) Series Helical Bevel Gearbox
Power Range: 4—6000 KW
Transmission Ration Range: 1.25—450
Output Torque: top to 950 Kn.m
Characteristics:
☆ Design
1.) Highly standard modular designed, more sizes with a reduced variety of parts.
2.) Higher operational reliability combined with increased power capacity.
☆Mounting position
The gear units can be supplied for either horizontal or vertical installation.
Other arrangements are also possible on request.
☆Long service life
Under the condition of accurately selecting type size and the normal maintenance and use, main components (expect those easily-disabled) can last as long as up to more than 50,000 hours.
☆Low noise
All key components are finished by precisely machining; grinding the gears; designing noise-absorbing housings; accurate assembly, and finally tested, and therefore, fairly low noise is reached.
☆Thermal conduction
1.) The gear units have a high efficiency.
2.) Through enlarged housing surface areas.
3.) Because large fans incorporating a new type of air conduction fan cowl are being used.
Gearbox Types:

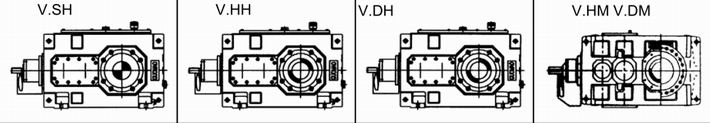

Horizontal Mounting Position, V2.H,,V3.H,,V4.H 1、2、3、4stage，i=5-400 |
|

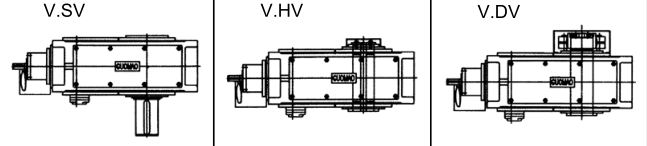

Vertical Mounting Position V2.V、V3.V、V4.V 2、3、4stage，i=5-400 |
|
Main Models and Specifications
Stages | Type | Ratio | Size |
2-stages | V2SH | 5 5.6 6.3 7.1 8 9 10 11.2 12.5 14 | V2SH4, V2SH5, V2SH6, V2SH7, V2SH8, V2SH9, V2SH10, V2SH11, V2SH12, V2SH13, V2SH14, V2SH15, V2SH16, V2SH17, V2SH18, V2SH19, V2SH20, V2SH21, V2SH22 |
V2HH | V2HH4, V2HH5, V2HH6, V2HH7, V2HH8, V2HH9, V2HH10, V2HH11, V2HH12, V2HH13, V2HH14, V2HH15, V2HH16, V2HH17, V2HH18, V2HH19, V2HH20, V2HH21, V2HH22 | ||
V2HM | V2HM4, V2HM5, V2HM6, V2HM7, V2HM8, V2HM9, V2HM10, V2HM11, V2HM12, V2HM13, V2HM14, V2HM15, V2HM16, V2HM17, V2HM18, V2HM19, V2HM20, V2HM21, V2HM22 | ||
V2DH | V2DH4, V2DH5, V2DH6, V2DH7, V2DH8, V2DH9, V2DH10, V2DH11, V2DH12, V2DH13, V2DH14, V2DH15, V2DH16, V2DH17, V2DH18, V2DH19, V2DH20, V2DH21, V2DH22 | ||
V2DM | V2DM4, V2DM5, V2DM6, 2DM7, V2DM8, V2DM9, V2DM10, V2DM11, V2DM12, V2DM13, V2DM14, V2DM15, V2DM16, V2DM17, V2DM18, V2DM19, V2DM20, V2DM21, V2DM22 | ||
3-stages | V3SH | 12.5, 14 16, 18 20, 22.4 25, 28 31.5, 35.5 40, 45 50, 56 63, 71 80, 90 | V3SH4, V3SH5, V3SH6, V3SH7, V3SH8, V3SH9, V3SH10, V3SH11, V3SH12, V3SH13, V3SH14, V3SH15, V3SH16, V3SH17, V3SH18, V3SH19, V3SH20, V3SH21 |
V3HH | V3HH4, V3HH5, V3HH6, V3HH7, V3HH8, V3HH9, V3HH10, V3HH11, V3HH12, V3HH13, V3HH14, V3HH15, V3HH16, V3HH17, V3HH18, V3HH19, V3HH20, V3HH21 | ||
V3DH | V3DH4, V3DH5, V3DH6, V3DH7, V3DH8, V3DH9, V3DH10, V3DH11, V3DH12, V3DH13, V3DH14, V3DH15, V3DH16, V3DH17, V3DH18, V3DH19, V3DH20, V3DH21 | ||
V3HM | V3HM4, V3HM5, V3HM6, V3HM7, V3HM8, V3HM9, V3HM10, V3HM11, V3HM12, V3HM13, V3HM14, V3HM15, V3HM16, V3HM17, V3HM18, V3HM19, V3HM20, V3HM21 | ||
V3DM | V3DM4, V3DM5, V3DM6, V3DM7, V3DM8, V3DM9, V3DM10, V3DM11, V3DM12, V3DM13, V3DM14, V3DM15, V3DM16, V3DM17, V3DM18, V3DM19, V3DM20, V3DM21 | ||
4-stages | V4SH | 80, 90 100, 112 125, 140 160, 180 200, 224 250, 280 315, 355 400 | V4SH5, V4SH6, V4SH7, V4SH8, V4SH9, V4SH10, V4SH11, V4SH12, V4SH13, V4SH14, V4SH15, V4SH16, V4SH17, V4SH18, V4SH19, V4SH20, V4SH21, V4SH22 |
V4HH | V4HH5, V4HH6, V4HH7, V4HH8, V4HH9, V4HH10, V4HH11, V4HH12, V4HH13, V4HH14, V4HH15, V4HH16, V4HH17, V4HH18, V4HH19, V4HH20, V4HH21, V4HH22 | ||
V4HM | V4HM5, V4HM6, V4HM7, 4HM8, V4HM9, V4HM10, V4HM11, V4HM12, V4HM13, V4HM14, V4HM15, V4HM16, V4HM17, V4HM18, V4HM19, V4HM20, V4HM21, V4HM22 | ||
V4DH | V4DH5, V4DH6, V4DH7, V4DH8, V4DH9, V4DH10, V4DH11, V4DH12, V4DH13, V4DH14, V4DH15, V4DH16, V4DH17, V4DH18, V4DH19, 4DH20, V4DH21, V4DH22 | ||
V4DM | V4DM5, V4DM6, V4DM7, V4DM8, V4DM9, V4DM10, V4DM11, V4DM12, V4DM13, V4DM14, V4DM15, V4DM16, V4DM17, V4DM18, V4DM19, V4DM20, V4DM21, V4DM22 |
Application Examples
☆ Belt conveyor drives
☆ Bucket elevator drives
☆ Agitator drives
☆ Hoisting gear drives
☆ Travelling gear drives
☆ Paper machine drives
☆ Dryer drives
☆ Water screw drives
