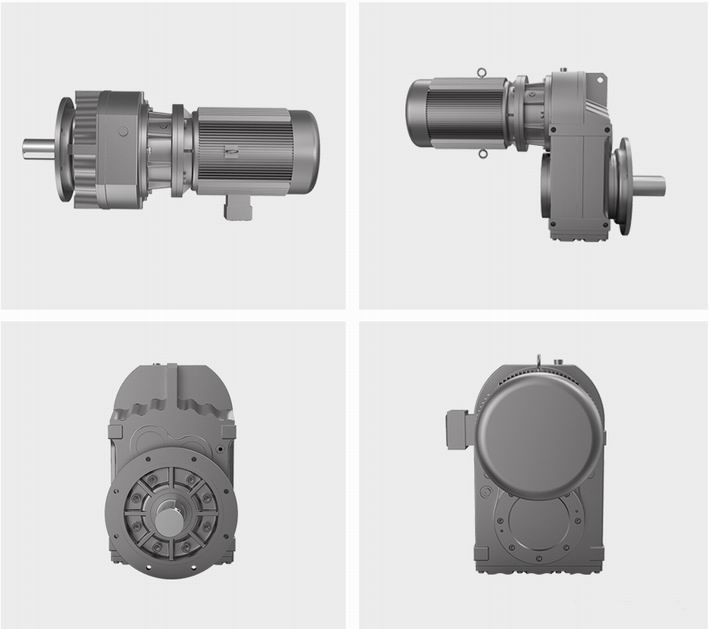

F Series Parallel Shaft Helical Gear Motor
Specifications:
Power Range: 0.12—110KW
Transmission Ration Range: 3.77—22289
Output Speed: 0.04—752 r/min
Output Torque: Top to 21477 N.m
Features:
★ Highly Standard Modular Designed
★ Quality Material Ensures Product Reliability
★ Wide Scope Transmission Ratio With Fine Division
★ High Strength,Compact Dimension
★ Long Service Life
★ Low Noise
★ High Efficiency
★ Large Radial Loading Ability
★ Axial Load Ability Of Up To 5% Of Radial Load
Type and Models:
Structure Form | |
FSeries | Foot mounted with solid output shaft |
FF Series | B5 flange mounted with solid output shaft |
FA Series | Shaft mounted with Hollow output shaft |
FAF Series | B5 flange mounted with Hollow output shaft |
FAZ | B14 flange mounted with hollow shaft |
FH | With Hollow shaft & Shrink Disk |
FHF | B5 flange-mounted with hollow shaft & Shrink Disk |
FHZ | B14 flange-mounted with hollow shaft & shrink disk |
FAT/FHT | Altered type by adding torque arm and other accessories on FA/FH type |
F..SZ..AD Series | Input shaft type to instead of motor |
F...R Series | Combined types of series F and R to reach very big ratios. |
Customized | Professional technical team offer customized design and item. |
Main Model | |
FSeries | F37, F47, F57, F67, F77, F87, F97, F107, F127, F157 |
FF Series | FF37, FF47, FF57, FF67, FF77, FF87, FF97, FF107, FF127, FF157 |
FA Series | FA37, FA47, FA57, FA67, FA77, FA87, FA97, FA107, FA127,FA157 |
FAF Series | FAF37, FAF47, FAF57, FAF67, FAF77, FAF87, FAF97, FAF107, FAF127,FAF157 |
FAZ Series | FAZ37, FAZ47, FAZ57, FAZ67, FAZ77, FAZ87, FAZ97, FAZ107, FAZ127,FAZ157 |
FH Series | FH37, FH47, FH57, FH67, FH77, FH87, FH97, FH107, FH127, FH157 |
FHF Series | FHF37, FHF47, FHF57, FHF67, FHF77, FHF87, FHF97, FHF107, FHF127, FHF157 |
FHZ Series | FHZ37, FHZ47, FHZ57, FHZ67, FHZ77, FHZ87, FHZ97, FHZ107, FHZ127, FHZ157 |
FAT/FHT Series | FAT37, FAT47, FAT57, FAT67, FAT77, FAT87, FAT97, FAT107, FAT127,FAT157 |
FHT37, FHT47, FHT57, FHT67, FHT77, FHT87, FHT97, FHT107, FHT127, FHT157 | |
F..SZ..AD Series | F..SZ37AD.., F..SZ47AD.., F..SZ57AD.., F..SZ67AD.., F..SZ7AD..7AD.., F..SZ87AD.., F..SZ97AD.., F..SZ107AD.., F..SZ127AD.., F..SZ157AD.., F..SZ167AD.., F..SZ187AD.. |
F...R Series | F37R17, F47R17, F57R37, F67R37, F77R37, F87R57, F97R57, F107R77, F127R77, F127R87, F157R97 |
FF37R17, FF47R17, FF57R37, FF67R37, FF77R37, FF87R57, FF97R57, FF107R77, FF127R77, FF127R87, FF157R97 | |
FA37R17, FA47R17, FA57R37, FA67R37, FA77R37, FA87R57, FA97R57, FA107R77, FA127R77, FA127R87, FA157R97 | |
FAF37R17, FAF47R17, FAF57R37, FAF67R37, FAF77R37, FAF87R57, FAF97R57, FAF107R77, FAF127R77, FAF127R87, FAF157R97 | |
Application Examples：
u Belt Conveyor Drives
u Bucket Elevator Drives
u Agitator Drives
u Hoisting Gear Drives
u Travelling Gear Drives
u Paper Machine Drives
u Dryer Drives
u Water Screw Drives
