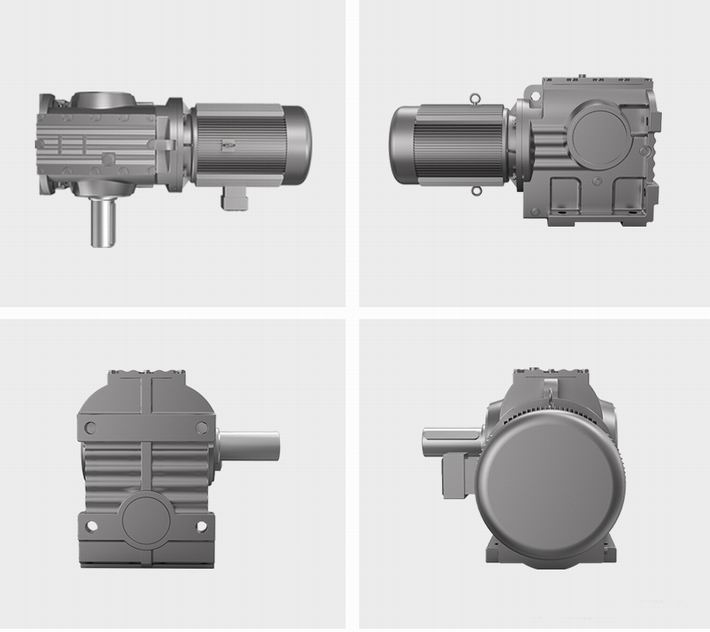

S Series Worm Helical Gear Motor
Specifications:
Power Range: 0.12—30KW
Transmission Ration Range:7.57—12901
Output Speed: 0.04~375 r/min
Output Torque: Top to 6500 N.m
Features:
u Highly Standard Modular Designed
u Quality Material Ensures Product Reliability
u Wide Scope Transmission Ratio With Fine Division
u High Strength,Compact Dimension
u Long Service Life
u Low Noise
u High Efficiency
u Large Radial Loading Ability
u Axial Load Ability Of Up To 5% Of Radial Load
Type and Models:
Structure Form | |
SSeries | Foot mounted with solid output shaft |
SF Series | B5 flange mounted with solid output shaft |
SA Series | With Hollow output shaft |
SAF Series | B5 flange mounted with Hollow output shaft |
SAZ | B14 flange mounted with hollow shaft |
SH | With Hollow shaft & Shrink Disk |
SHF | B5 flange-mounted type with hollow shaft& shrink disk |
SHZ | B14 flange-mounted type with hollow shaft & shrink disk |
SAT/SHT | Torque arm mounted with hollow output shaft |
S..SZ..AD Series | Input shaft type to instead of motor |
S...R Series | Combined types of series GK and GR to reach very big ratios. |
Customized | Professional technical team offer customized design and item. |
Main Model | |
SSeries | S37, S47, S57, S67, S77, S87, S97, S100 |
SF Series | SF37, SF47, SF57, SF67, SF77, SF87, SF97, SF100 |
SA Series | SA37, SA47, SA57, SA67, SA77, SA87, SA97, SA100 |
SAF Series | SAF37, SAF47, SAF57, SAF67, SAF77, SAF87, SAF97, SAF100 |
SAZ Series | SAZ37, SAZ47, SAZ57, SAZ67, SAZ77, SAZ87, SAZ97, SAZ100 |
SH Series | SH37, SH47, SH57, SH67, SH77, SH87, SH97, SH100 |
SHF Series | SHF37, SHF47, SHF57, SHF67, SHF77, SHF87, SHF97, SHF100 |
SHZ Series | SHZ37, SHZ47, SHZ57, SHZ67, SHZ77, SHZ87, SHZ97, SHZ100 |
SAT/SHT Series | SAT37, SAT47, SAT57, SAT67, SAT77, SAT87, SAT97, SAT100 |
SHT37, SHT47, SHT57, SHT67, SHT77, SHT87, SHT97, SHT100 | |
S..SZ..AD Series | S..SZ37AD.., S..SZ47AD.., S..SZ57AD.., S..SZ67AD.., S..SZ7AD..7AD.., S..SZ87AD.., S..SZ97AD.., S..SZ100AD.. |
S...R Series | S37R17, S47R17, S57R17, S67R37, S77R37, S87R57, S97R57, S100R77 |
SF37R17, SF47R17, SF57R17, SF67R37, SF77R37, SF87R57, SF97R57, SF100R77 | |
SA37R17, SA47R17, SA57R17, SA67R37, SA77R37, SA87R57, SA97R57, SA100R77 | |
SAF37R17, SAF47R17, SAF57R17, SAF67R37, SAF77R37, SAF87R57, SAF97R57, SAF100R77 | |
Application Examples：
u Belt Conveyor Drives
u Bucket Elevator Drives
u Agitator Drives
u Hoisting Gear Drives
u Travelling Gear Drives
u Paper Machine Drives
u Dryer Drives
u Water Screw Drives
