YD Variable Speed Multi Speed Three-Phase Asynchronous Motor
Principle And Application:
YD series (IP54) variable multi speed three-phase asynchronous motor is Y2 (IP54) series of products derived from motor three-phase asynchronous motor, which uses the stator winding of change to change the number of motor, so the motor with one set or two sets of winding for two or more than two kinds of speed.
I plant since the production of YD series (IP54) from the 80-280 seat number 11 seat number, a total of 96 specifications.

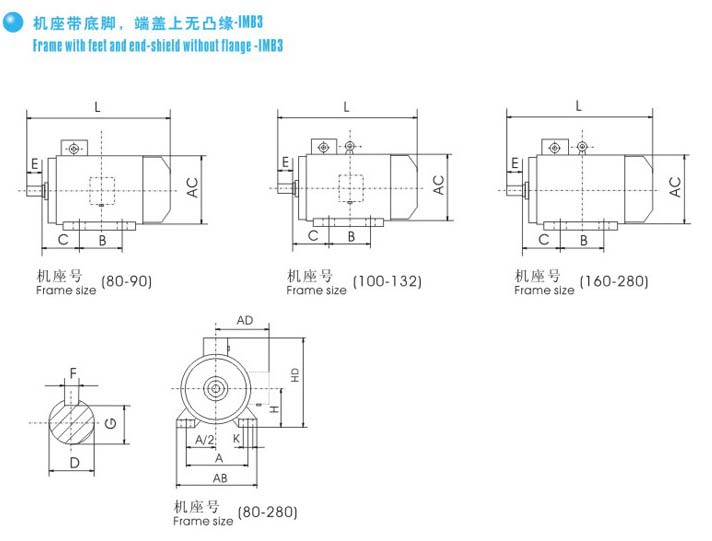

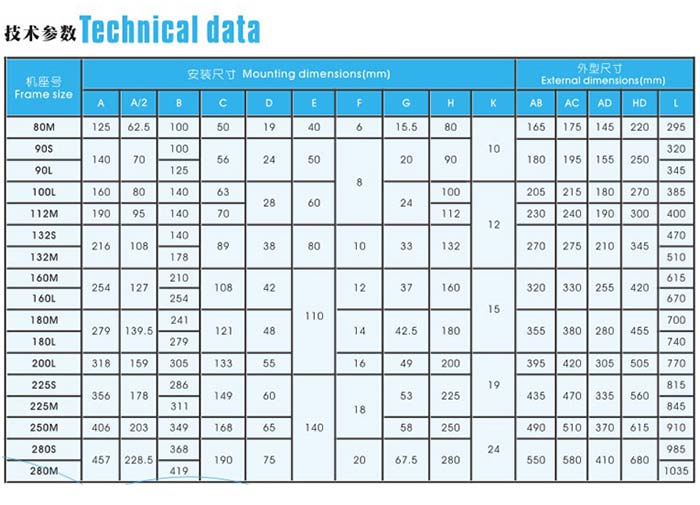

YD series (IP54) installation size, size and insulation level pole-changing three-phase asynchronous motor, protection grade, cooling method, structure and installation, operating conditions, rated voltage, rated frequency, etc. with the Y2 series (IP54) motor.
YD series (IP54) variable speed three phase induction motor has the ability to vary the speed of the motor according to the requirements of the load, so as to achieve the reasonable matching of power and simplify the characteristics of the transmission system. The utility model is suitable for various transmission mechanisms which need to be adjusted step by step, such as various cutting machine tools, mining metallurgical machinery, textile machinery, printing and dyeing machinery, chemical machinery, agricultural machinery, etc.. This series is designed and manufactured according to the technical conditions of JB/T7127-1993 series YD variable speed and very high speed asynchronous motor. At the same time can also produce a variety of electromagnetic brake multi speed three-phase asynchronous motor.
