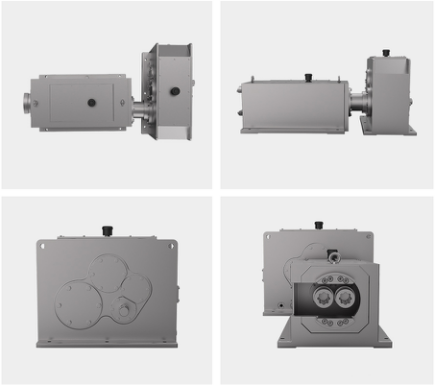

SZ Serial Gearbox for Conical Twin-Screw Rod Extruder
Specifications:
Gearing Arrangement: Conical Twin-Screw
Output Torque: 800-100000nm
Rated Power: 5.5-540kw
Input Speed: 1500,1200,1000,750,600r/min
Output Speed: 8-20r/min
Place of Origin: Shandong, China (Mainland)
Model Number: SZ45/50/55/65/80/92
Brand Name: Vinson
Features:
ZS Exturder reducers are a kind of high-precision rigid gear assembly specially designed for the single-screw plastic/rubber extruder.
1. The input rotation of prime mover shall be ≤15OOrpm.
2. The peripheral speed of gear drive shall be ≤20m/s.
3. The working ambient temperature shall be within -40°C~45°C. Preheat the lubricatting oil to above 0°C when the ambient temperature is below 0°C. Rotation is available both forwards and backwards.However, the high-speed shaft of some types of reducers has a single-way oil pump directing as defaulted to the output shaft which rotates clockwise. If you want to change the direction, please make detailed description while placing order.
4. ZS gearbox of 112-146 is Natural cooling, 173-250 is Coil cooling, 225-250 is Cooler Cooling with pump. the material of cooling tube is pure bronze.( with cooling tower or not)
5. Our bearing is Tapered Roller Bearings
6. There are several normal ratio: 8,10,12.5,16,20, depends on customers requirements.
7. Various seal form and perfect oil leak-proof function.( Do not leaking oil)
Application:
1. The input rotation of prime mover shall be ≤1500rpm
2. The peripheral speed of gear drive shall be ≤20m/s
3. The working ambient temperature shall be within -40~45°C.Preheat the lubrication oil to above 0°C when the ambient temperature is below 0°C. Rotation is available both forwards and backwards. However, the high speed shaft of some types of reducers has a single way oil pump directing as defaulted to the output shaft which rotates clockwise.

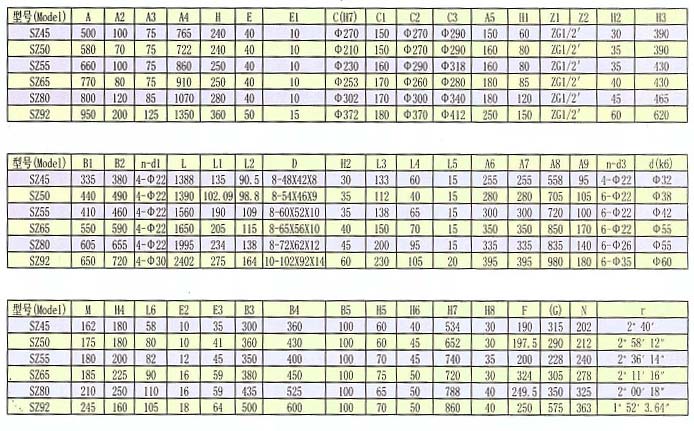

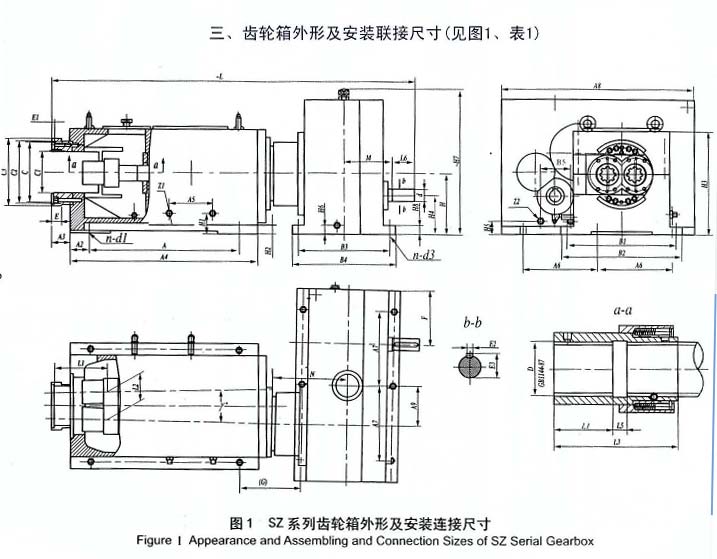

Gear Box Outline And Installation Size:

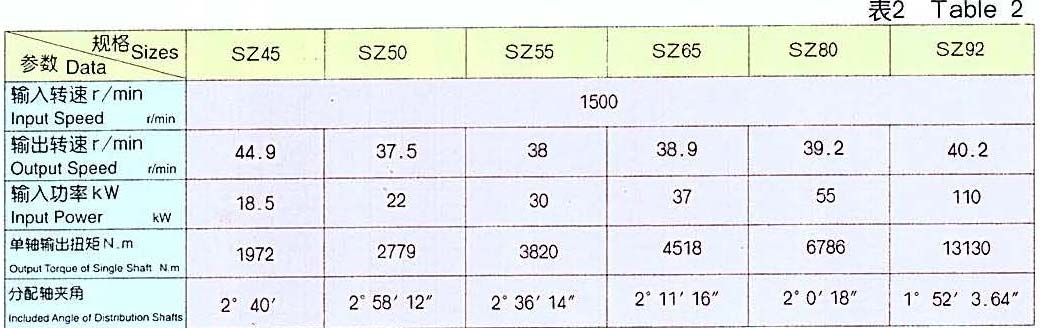

Main Technical Features:
