SWL Series Worm Gear Screw Jack
Function:
Screw jack is a basis jack-up part, accomplish the faction such as
lifting, drop, push and inverting through worm gear drives screw.
Advantages:
-Self-locking ability
-Can be driven directly by motor or other power or manual
-Can be customized according user's demand
-Compact configuration, small size, lightweight
-Convenient installation, flexible operation
-High reliability and stability
-Long service life
-More connection form etc.
Application Industry:
Screw jack is applied to all fields for lifting or pulling, such as Aircraft maintenance platform, Solar plate, machinery, metallurgy, water conservancy, medical treatment, chemical industry, culture and hygienist etc.
Main Model and Specifications:
Type | Model | Screw Thread Size (Outer Screw Diameter*Screw Pitch) | Max. Capacity (Kn ) | Weight Without Stroke (Kg) | Screw Weight Per 100mm (Kg) |
Acme Screw Mechanical Worm Gear Screw Jack | SWL2.5 | Tr30*6 | 25 | 7.3 | 0.45 |
SWL5 | Tr40*7 | 50 | 16.2 | 0.82 | |
SWL10/15 | Tr58*12 | 100/150 | 25 | 1.67 | |
SWL20 | Tr65*12 | 200 | 36 | 2.15 | |
SWL25 | Tr90*16 | 250 | 70.5 | 4.15 | |
SWL35 | Tr100*18 | 350 | 87 | 5.20 | |
SWL50 | Tr120*20 | 500 | 420 | 7.45 | |
SWL100 | Tr160*23 | 1000 | 1010 | 13.6 |

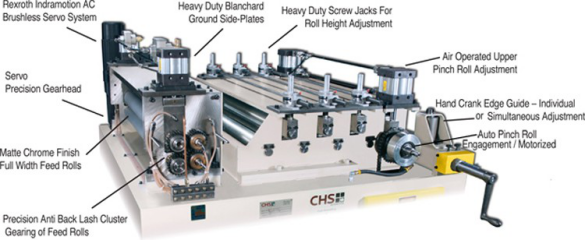

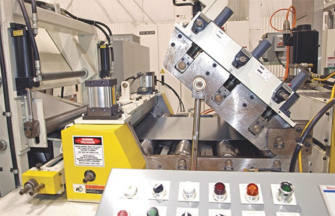

Application
