T Series Spiral Bevel Gearbox
T series spiral bevel gearbox overview:
1)T series spiral bevel gearbox with various types are standardlzed ,all ratios of 1:1,1.5:1,2;1,2.5:1,3:1,4:1 and 5:1 are actual ones Average efflciency ls 98%
2)There are on input shaft,unilateral output shaft and double side output shaft.
3)Spiral bevel gear can rotate in both directions and transmit smoothly ,low noise,light vibration,high performance.
4)If ratio is not 1:1,if input speed on single-extendaibe shaft ,output speed will be reduced.
Product Features:
1. Chassis: Using high rigidity FC - 25 iron casting.
2. Gear: Adopt high quality high grade synthetic diamond 50CrMnT piece, modified processing, steel by carbonizing quench treatment and grinding and become.
3. Spindle: adopt high quality high purity steel alloy 40Cr piece, modified processing, have high heavy load capacity.
4. Bearing a heavy load capacity, equipped with the roll cone bearing;
5. Oil Seal: imported double lip seal with high dustproof prevent leakage ability.
Models:
Type | T2 | T4 | T6 | T7 | T8 | T10 | T12 | T16 | T20 | T25 |
Ratio | 1:1 1.5:1 2:1 2.5:1 3:1 | |||||||||
Weight(KG) | 4 | 10 | 21 | 32 | 49 | 78 | 124 | 188 | 297 | 488 |

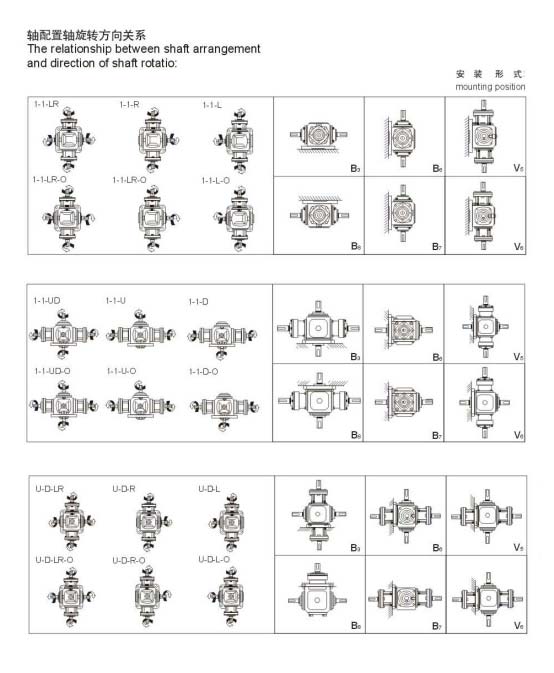

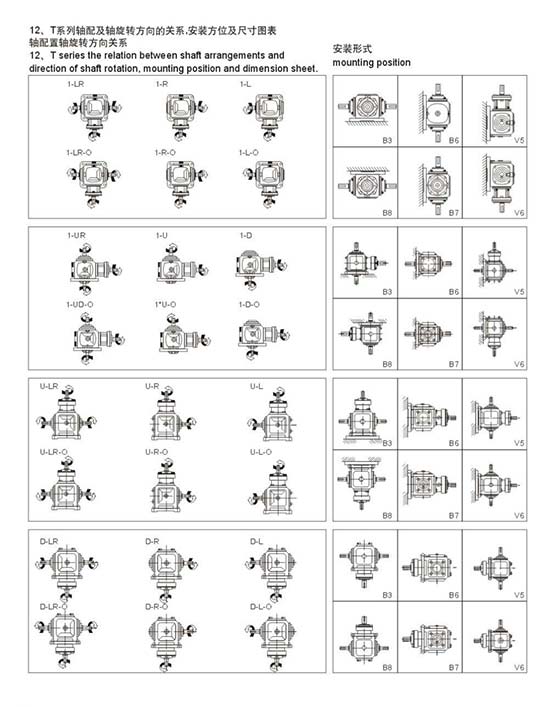

Main Types and Shaft Arrangement:
