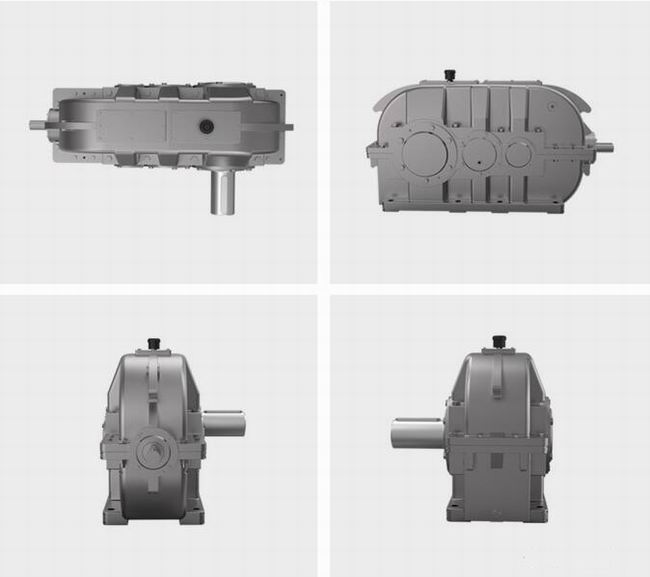

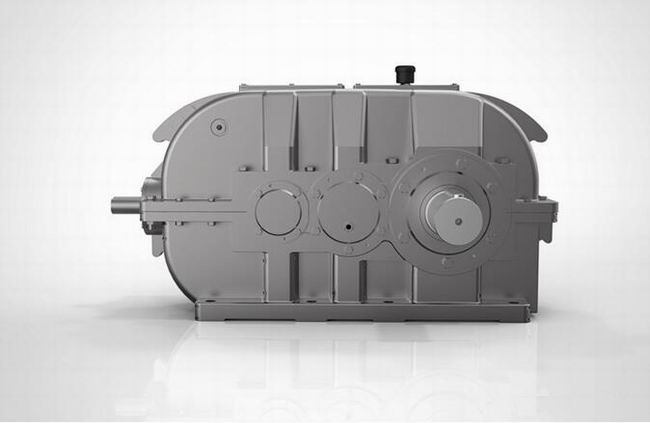

DBY, DCY Bevel Cylindrical Gear Reducer
(1) The input speed is general n, or less than 1500r/min
(2) The speed of the gears is not greater than 20 m/s.
(3) Working environment - 40 ~ 50 ℃, the mouth is lower than 0 ℃, before the start of lubricating oil should be preheated to 0 ℃ above, the speed reducer can be used in positive and negative two directions.
Characteristics:
(1) The center distance, the main parameters such as the transmission ratio are optimized, the main zero and the parts are interchangeable.
(2) The gears are made of high quality alloy steel, which is hardened by carburizing and hardening, and the hardness of the teeth is called hrc54-62.
(3) Small size, light weight, high precision, high bearing capacity, high efficiency, long life, high reliability, stable transmission and low noise.
(4) The oil pool is normally used for cooling, and when the heat power is not satisfied, the cooling coil can be cooled by circulating oil lubrication or fan.

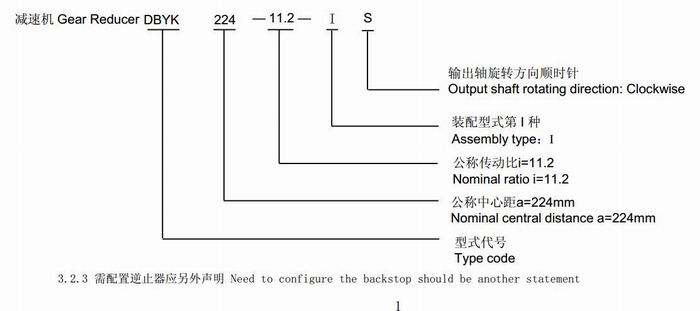

Model Marking Example:
Main Types & Models:
1.DBY Type Two-stages Transmission Harden Gear Bevel Cylindrical Gear Reducer Models:
-With Solid Output Shaft: DCY160, DCY180, DCY200, DCY224, DCY250, DCY280, DCY315, DCY355, DCY400, DCY450, DCY500, DCY560
-With Hollow Output Shaft: DCYK160, DCYK180, DCYK200, DCYK224, DCYK250, DCYK280, DCYK315, DCYK355, DCYK400, DCYK450, DCYK500, DCYK560
2.DCY Type Three-stages Transmission Harden Gear Bevel Cylindrical Gear Reducer Models:
-With Solid Output Shaft: DCY160, DCY180, DCY200, DCY224, DCY250, DCY280, DCY315, DCY355, DCY400, DCY450, DCY500, DCY560, DCY630, DCY710, DCY800
-With Hollow Output Shaft: DCYK160, DCYK180, DCYK200, DCYK224, DCYK250, DCYK280, DCYK315, DCYK355, DCYK400, DCYK450, DCYK500, DCYK560, DCYK630, DCYK710, DCYK800
Application:
This product is widely applied to fields of metallurgy, mines, hoisting, transportation, cement, architecture, chemical, textile, printing, dyeing and pharmaceutical etc.
