DP Series Planetary Speed Reducer

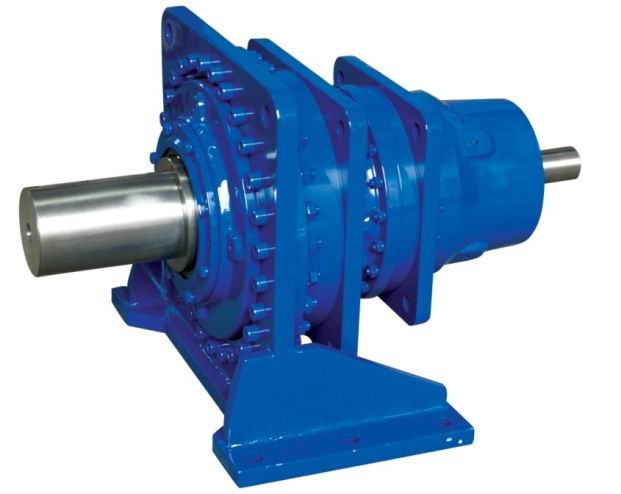

DP Series Planetary Speed Reducer is standardized gear unit solutions for higher power rating ranges in the proven FLENDER quality. With 27 sizes and seven basic types, the DP series ensures torque ranges of up to 2,600,000 Nm and transmission ratios of 4,000:1. And it widely used for industry equipment of metallurgy, Building Material, Chemical, Mining, Oil, Transportation, Papermaking, Sugar making, Engineering Machines, etc.
Main Parameters:
Power: Up to 12000KW
Ratio: Up to 4000
Output Torque: Up to 2600000 N.m
Explanation Of Types:
DP series planetary gear unit types |
DP2N: 2 stage planetary gear units |
DP2L: Vertical shafts, 2 stage planetary gear units |
DP2S: Parallel shafts, 2 stage plantary gear units |
DP2K: Bevel helical, 2 stage planetary gear units |
DP3N: 3 stage planetary gear units |
DP3S: Parallel shafts, 3 stage planetary gear units |
DP3K: Bevel helical, 3 stages planetary gear units |

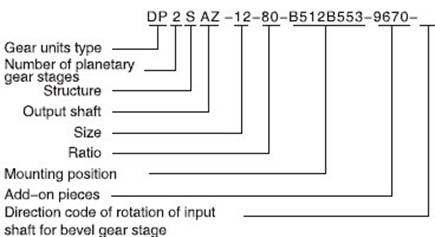

Model Explanation Of DP Series Planetary Gear Units:
| |
Explanation Of Types | Explanation Of Above Example |
Gear Unit Type DP Series Planetary Gear Units | Two-stages Planetary Gear Transmission |
Number Of Planetary Gear Stage Two Stages Three Stages | Two Stage Planetary Gear Unit |
Structure: N Standard L Bevel Gear Stage S Helical Gear Stage K Bevel-Helical Gear Stage | Helical Gear Stage |
Output Shaft: AZ: Hollow Shaft with Shrink Disk AH: Hollow Shaft with Involute Splines BS: Solid Shaft with Key BH: Solid Shaft with Involute Splines | Hollow Shaft With Shrink Disk |
Size: 9-36 | 12 |
Ratio: Up To 4000 | 80 |
Mounting Position B500-B556 Horizontal V100-B130 Vertical V300-V330 Vertical …….. | Mounting Position B512B553: Horizontal, input shaft at the right side, torque reaction arm on down side |
Rotating Direction Code Of Input Shaft For Bevel Gear Stage (Viewing On Input Shaft): CW: Clockwise CCW: Counter Clockwise | Helical Gear Stage Omitted |
Add-On Pieces 99---None 96---Gear Housing Base 70---Motor Bell Housing(Input) 71---Motor Bracket 72---Motor Bracket 73---Motor Swing-Base 74---Bell-Housing (Output) 75---Torque Arm(One Side) 76---Torque Arm(Two Side) | Add-on the gear housing base motor belling housing (input) |
