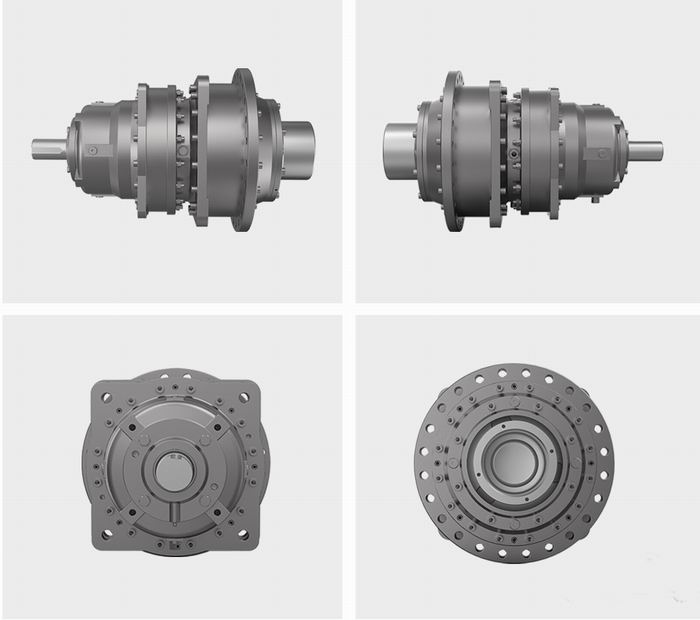

GX Series Planetary Gearbox
Product Introduction
GX Serial gearbox there are total 27 sizes of 9-36 model, adopting high design, with rated output torque are from 22 to 2600KNm and ratio from 25 to 4000, which can be combined with type R, K, S series to reach higher ratio.
The housing of GX serial planetary gearbox adopts high strength nodular cast iron steel, the inner gear ring is made to outer housing directly, gear and gear shaft adopt technique of controllable atmosphere carburizing, quenching and precision grinding, and make profile modification and gear direction helix modification. The main parts use three-dimensional software design and do limited meta-analysis. Each spare part of complete gearbox is via precision processing and carefully assembly. Comparing with domestic normal NGW planetary gear reducer, the item owns advantages of high loading capacity per unit volume, low noise and long service life etc.
Main Structure and Stages:
GX2N---2 stage planetary gear units;
GX2L---Vertical shafts, 2 stage planetary gear units;
GX2S---Parallel shafts, 2 stage planetary gear units;
GX2K---Bevel-helical, 2 stage planetary gear units;
GX3N---3 stage planetary gear units;
GX3S---Parallel shafts, 3 stage planetary gear units;
GX3K---Bevel helical, 3 stages planetary gear units;
The Advantages:
1. Several tooth drive, high strength and high credibility
2. The material of main parts is bearing steel
3. Litter inertia adapts reducer interfering
4. Low noise high efficiency, single stage efficiency are more than 92%.
5. Input shaft and output shaft in the same axis
Main Model and Specifications:
Model | Ratio | Input Speed (rpm) | Nominal Power (kw) | Nominal Output Torque (N.m) |
GX2NAZ9..36 | 25 28 31.5 35.5 40 | 1500 | 43-12934 | 22000-2600000 |
1000 | ||||
750 | ||||
GX2LAZ9..36 | 31.5 35.5 40 4550 56 63 71 80 90 100 | 1500 | 17-12937 | 22000-1200000 |
1000 | ||||
750 | ||||
GX2SAZ9..36 | 45 50 56 63 71 80 90 100 112 125 | 1500 | 6-6050 | 22000-2600000 |
1000 | ||||
750 | ||||
GX2KAZ9..20 | 112 125 140 160 180 200 225 250 280 320 360 400 450 500 560 | 1500 | 1.5-498 | 22000-354000 |
1000 | ||||
750 | ||||
GX3NAZ9..36 | 140 160 180 200 225 250 280 | 1500 | 2.7-1953 | 22000-1920000 |
1000 | ||||
750 | ||||
GX3SAZ9..36 | 280 315 355 400 450 500 560 630 710 800 900 | 1500 | 0.8-1480 | 22000-1920000 |
1000 | ||||
750 | ||||
GX3KAZ9..30 | 560 630 710 800 900 1000 1120 1250 1400 1600 1800 2000 2240 2500 2800 3150 3550 4000 | 1500 | 0.4-342 | 22000-1200000 |
1000 | ||||
750 |
