ZD, ZL, ZS, ZF Series Middle-harden Gear Speed Reducer
Power: 0.4~350 Kw
Transmission Ration Range: 8.23~500
Max allowable redial load for output shaft: 800~13400 Kg
Characteristics:
1.The gear is made of high strength low carbon alloy steel after carburizing and quenching, the tooth surface hardness of HRC58-62, gears are grinding process, high precision, good contact.
2.High transmission rate: single level greater than 96.5%, the double level is greater than 93%, greater than the level of 90%.
3.Smooth operation, low noise.
4. Long service life, high bearing capacity.
5. Easy disassembly, easy to install.
Representation Examples:
ZL -250 -10 -II |
ZL : TYPE |
250: Center space |
10: Radio’s code |
II: Assembly form |
Main Models:
| Type | Models | |||||||||||
| 1-stage | ZD10 | ZD15 | ZD20 | ZD25 | ZD30 | ZD35 | ZD40 | ZD45 | ZD50 | ZD60 | ZD70 | ZD80 |
| 2-stages | ZL25 | ZL35 | ZL42.5 | ZL50 | ZL60 | ZL65 | ZL75 | ZL85 | ZL100 | ZL115 | ZL130 | |
| 3-stages | ZS50 | ZS65 | ZS75 | ZS82.5 | ZS95 | ZS110 | ZS125 | ZS145 | ZS165 |

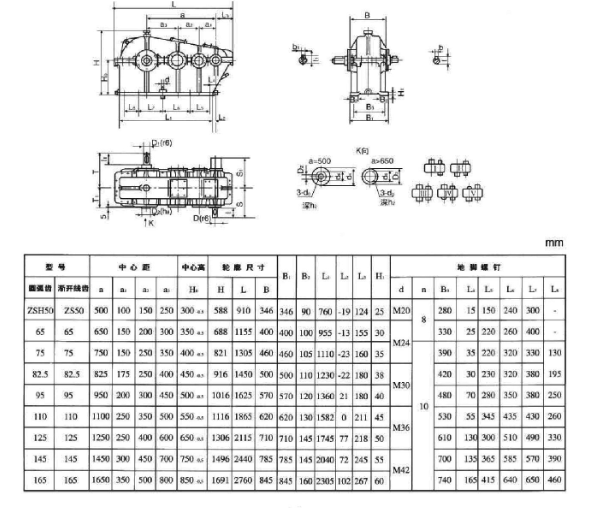

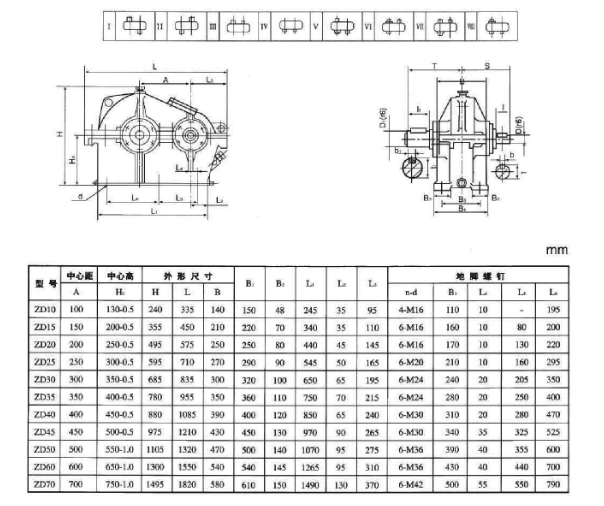

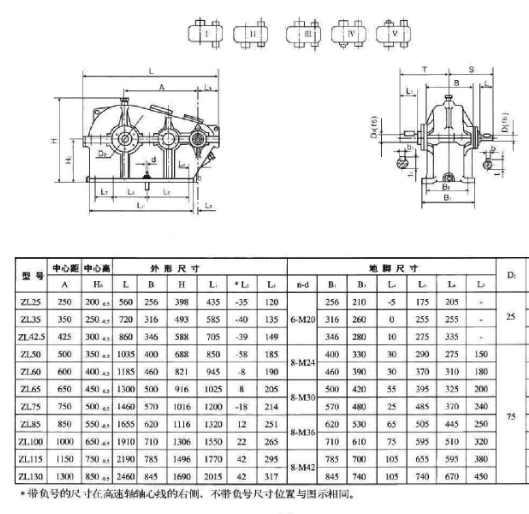

Main Ratio and Dimension:
ZD Type One-stage Middle Harden Gear Reducer
No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 |
Radio: | 2 | 2.24 | 2.5 | 2.8 | 3.16 | 3.55 | 4 | 4.5 | 5 | 5.6 | 6.3 |
ZL Type Two-stages Middle Harden Gear Reducer
| No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 |
| Radio | 7.1 | 8 | 9 | 10 | 11.2 | 12.5 | 14 | 16 | 18 | 20 | 22.4 | 25 | 28 | 31.5 | 35.5 | 40 | 45 |
ZS Type Three-stages Middle Harden Gear Reducer
| No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| Radio | 50 | 56 | 63 | 71 | 80 | 90 | 100 | 112 | 125 | 140 | 160 | 180 | 224 | 224 | 250 | 280 |
Application：
This product is widely applied to fields of metallurgy, mines, hoisting, transportation, cement, architecture, chemical, textile, printing, dyeing and pharmaceutical etc.
