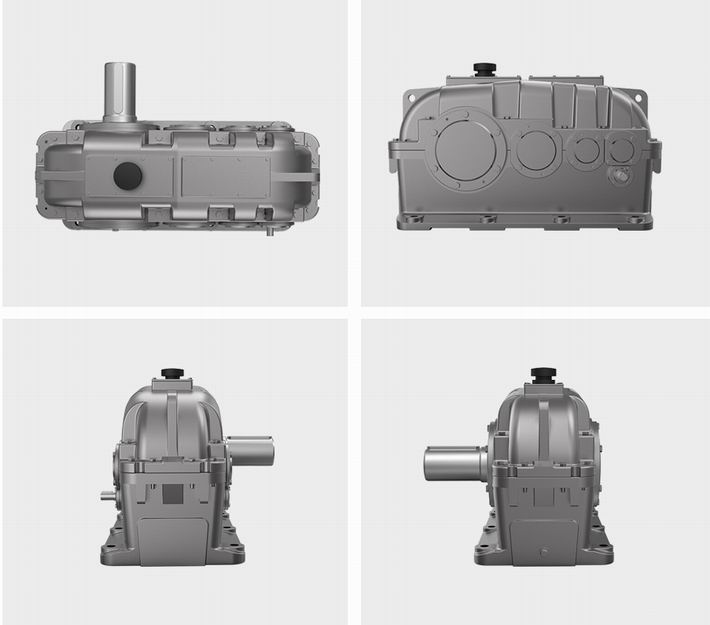

ZFY Four-stages Cylindrical Gear Reducer
Power: 1.1~6000 Kw
Transmission Ration Range: 1.25~500
Output Torque: top to 520 N.m
Output Speed:1.5~15 r/min
Characteristics:
1. The gear is made of high strength low carbon alloy steel through carburization and quenching. The hardness of tooth surface may reach to HRC58‐62. All gear adopts NC tooth grinding process, high in accuracy and good in contact performance；
2. Highly transmission efficiency: single stage, more than 96.5%; double‐stage, more than 93%; three‐stage, more 90%;
3. Smooth and stable in run, low noise;
4. Compact size, light weight, long service life and high load capacity;
5. Easy to disassemble, inspect and assemble.

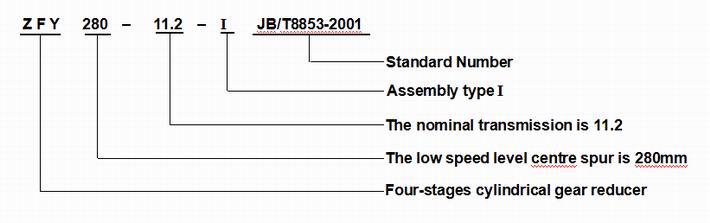

Model Marking Examples:
Main Models:
ZFY180, ZFY200, ZFY225, ZFY250, ZFY280, ZFY320, ZFY360, ZFY400, ZFY450, ZFY500, ZFY560, ZFY630, ZFY710, ZFY800
Application：
This product is widely applied to fields of metallurgy, mines, hoisting, transportation, cement, architecture, chemical, textile, printing, dyeing and pharmaceutical etc.
Application Examples
★ Belt conveyor drives
★ Bucket elevator drives
★ Agitator drives
★ Hoisting gear drives
★ Travelling gear drives
★ Paper machine drives
★ Dryer drives
★ Water screw drives
